Perkins 3.152 Series Starter Motor

Perkins 3.152 Series Starter Motor ★ Eenvoudige zelfinstallatie ★ Onzichtbare diefstalbescherming → Kies voor gemoedsrust

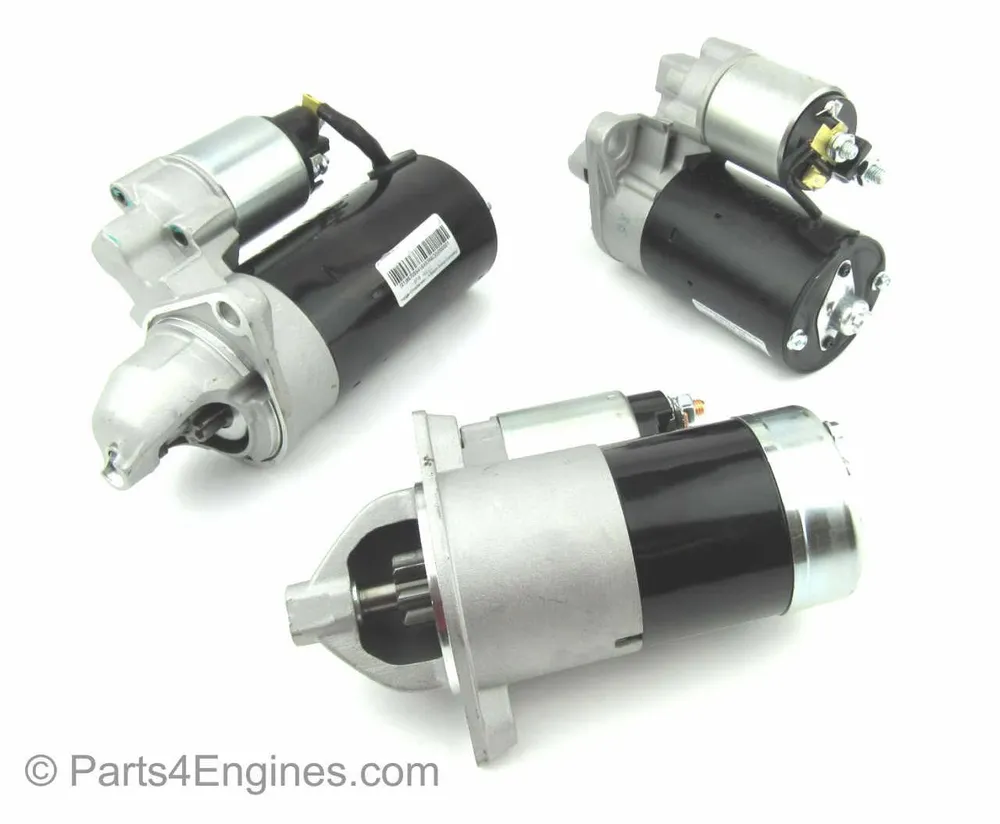

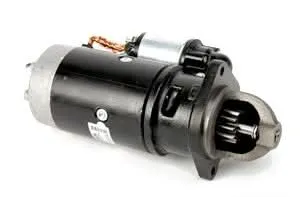

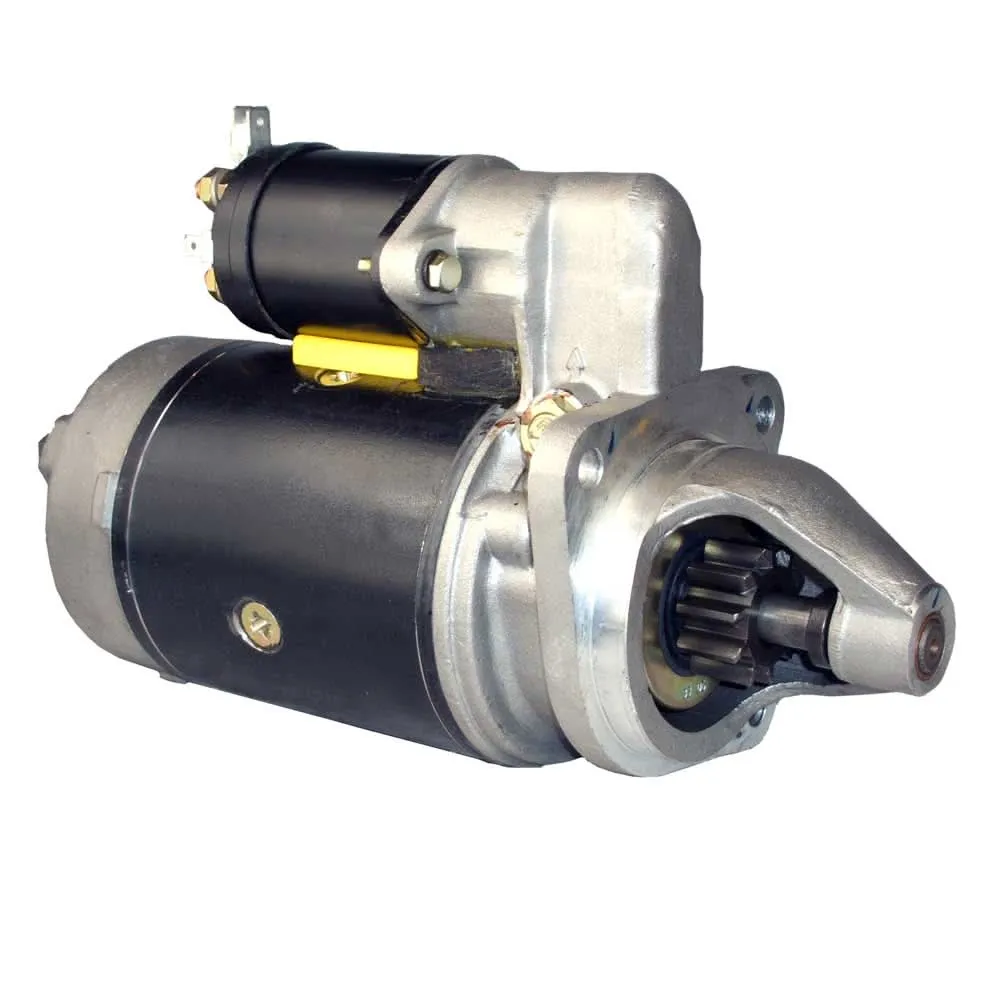

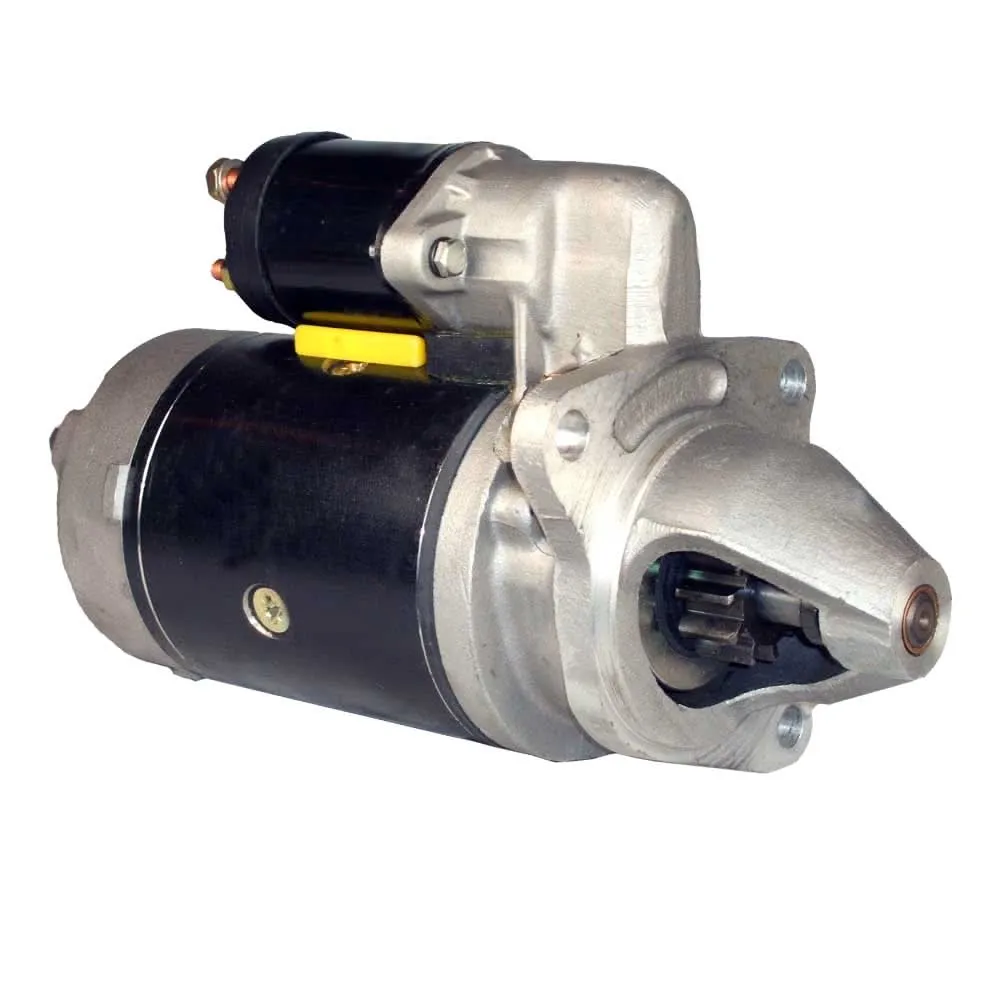

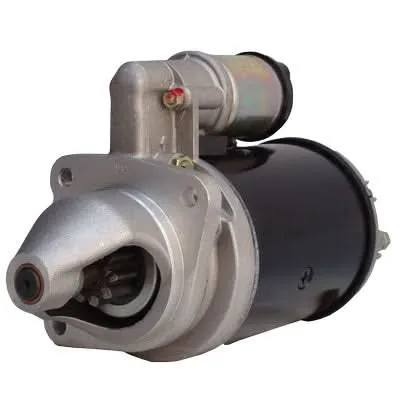

High quality aftermarket Perkins 3.152 starters 12V earth return. Fit all versions (including marine) of these engines set up for a ’three lug’ mounted starter.

Contact us if you need more info about all of the options we list. *Check also the images for the glossary of starter motor terms

– Option 1. (see images) 12V 2.1kW with the Nose Housing opening on the left hand – *mounting position: 45°, mounting type: SAE1, pinion: 10 teeth, Pinion Outside Diameter: 39.4 mm

• CE – D3.152
• CJ – 3.1522
• CM – 3.1524
• CN – T3.1524

– Option 2. (see images) 12V 2.1kW with the Nose Housing opening on the left hand – *mounting position: 315°, pinion: 10 teeth, Pinion Outside Diameter: 39.5 mm

• CE – D3.152
• CM – 3.1524
• CN – T3.1524

– Option 3. (see
