There are many ways to drive the motor. Our robot uses the most commonly used L298P solution.
L298P is an excellent krachtig motor driver IC produced by STMicroelectronics. It can directly drive DC motors, two-phase and four-phase stepping motors. The driving current up to 2A, and the output terminal of motor adopts eight high-speed Schottky diodes as protection.

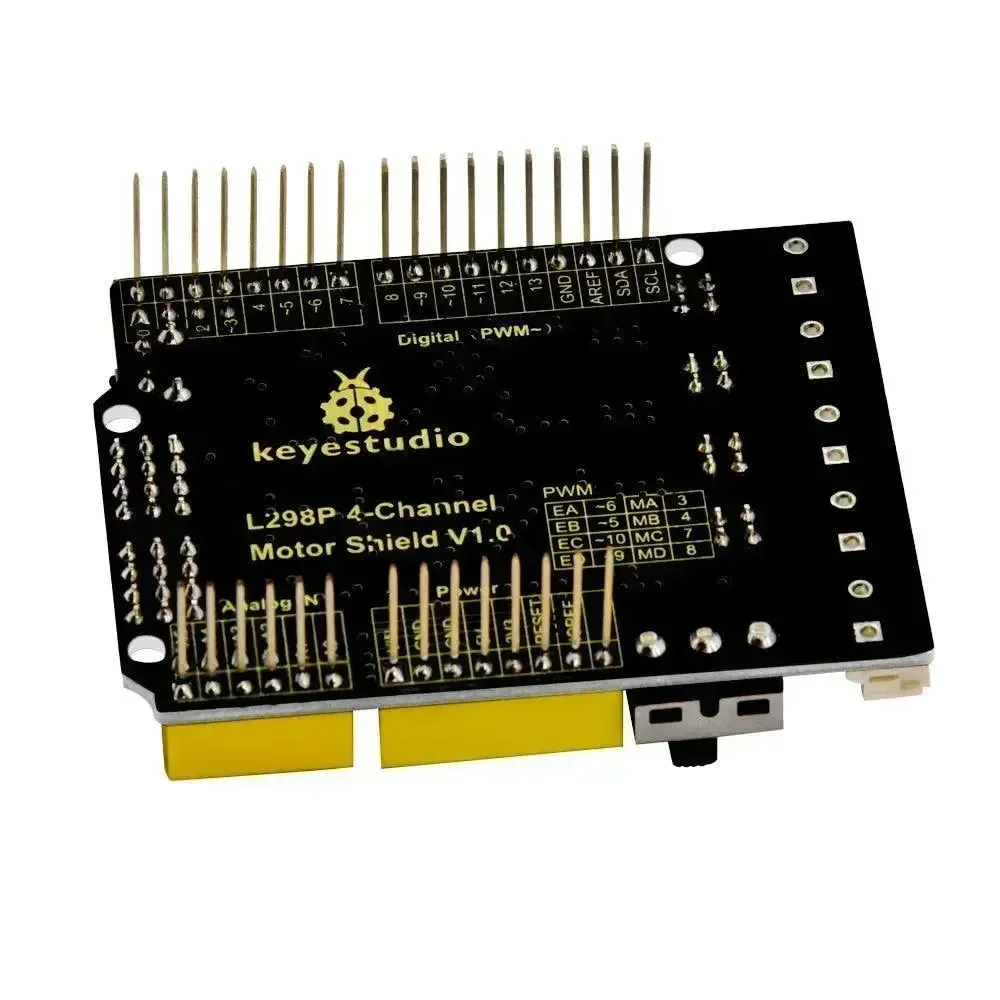

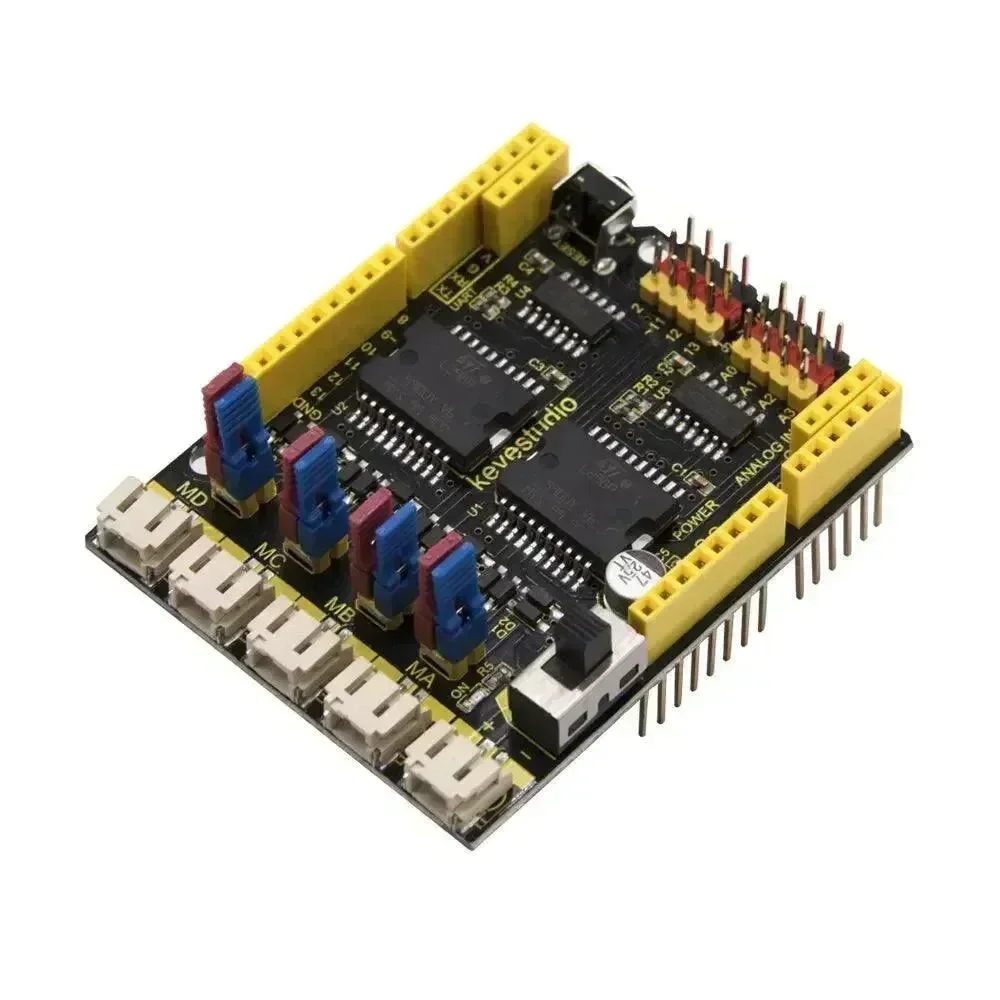

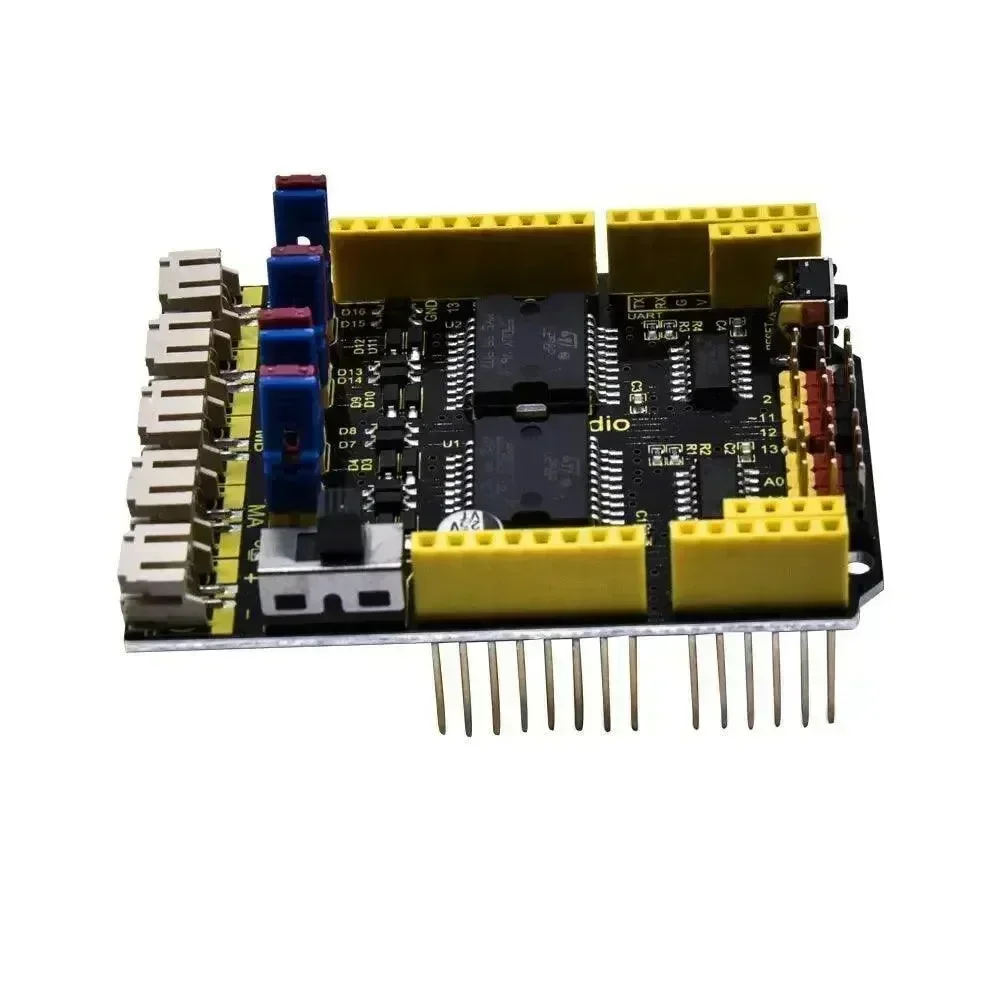

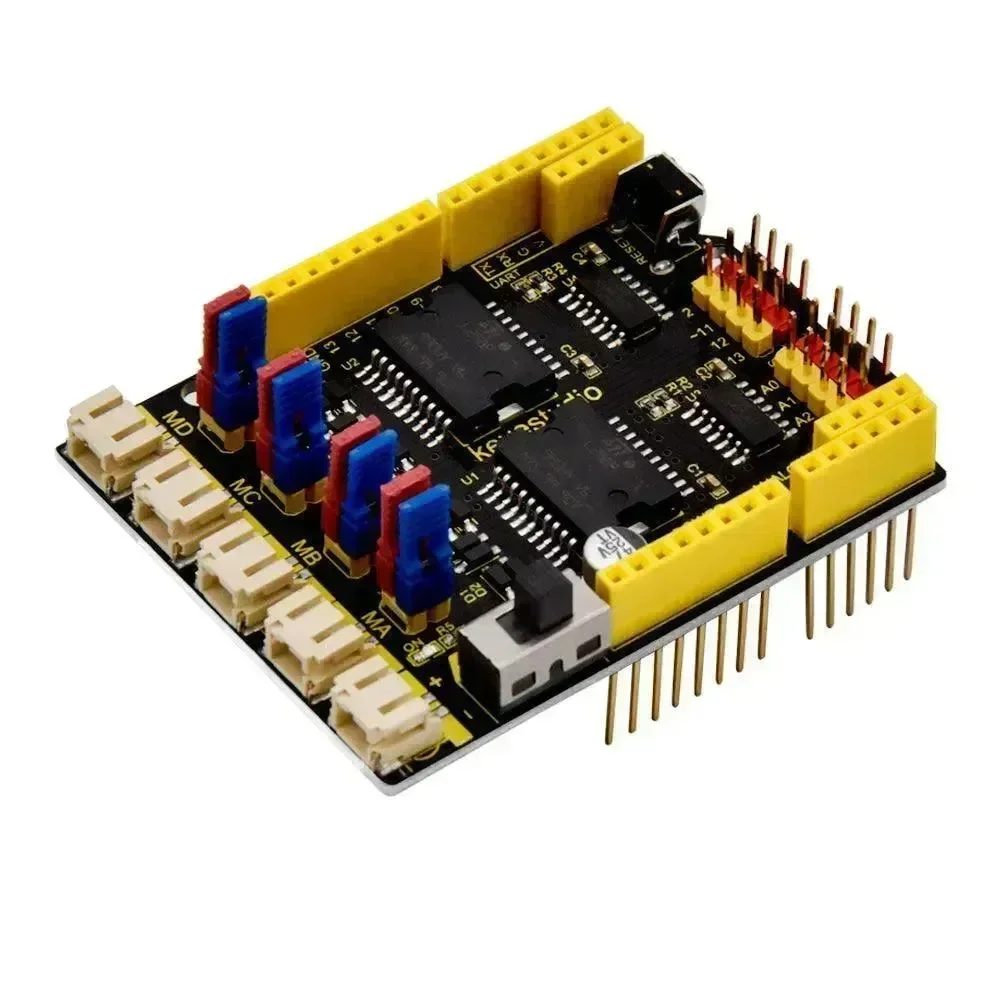

We have designed the motor driver shield based on the L298P circuit.
The stackable design can make it be plugged directly into the Arduino, reducing the technical difficulty of using and driving the motor.
Direct stack the motor driver shield onto UNO R3 board, after the BAT is powered on, turn the Slide button ON, to supply the power for both KeyeStudio motor drivers shield V2 and UNO R3 board. For simple wiring, the motor driver shield comes with anti-reverse PH2.0-2P connectors. When connecting the motors, just plug in directly.
The Bluetooth interface on the motor driver shield is
